Inspection of reflective surfaces
and transparent materials

Transparent materials : QualiLENS® 400


QualiLENS® 400 is used to characterise transparent materials such as:


  • Windshields / glass roofs
  • Bottle preforms / flasks

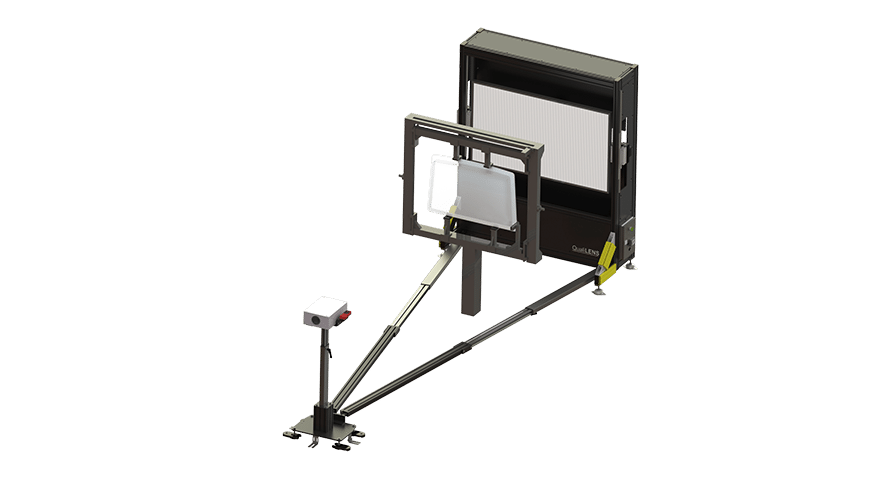

QualiSENSOR pour pare-brise
Measurement range 240 x 1800 mm*
Lateral resolution 100 μm
Accuracy < 2 mo*
Power supply 230 / 110 V – 16 A

Each user may have different applications and therefore different needs, we exclusively design customised systems.

Features:

Defect detection


Any aesthetic and / or functional defect of the transparent material will be detected and assessed by the QualiLENS® 400 in a matter of seconds.

Some application examples are:

Cabin windows for aircraft

The quality control of cabin windows involves detecting cosmetic defects, such as scratches. In this application, QualiLENS®400 enables defects to be automatically identified, labelled and classified.




Characteristic measurement


Characteristics such as optical distortion are important parameters in a large number of industrial processes: windshields, aeronautical glazing, etc.

The technology of the QualiLENS® 400 is particularly well suited to this type of characterisation.


Cabin windows for aircraft

Mesure des distorsions optiques d’un vitrage

The QualiLENS® 400 measures optical distortions on all or part of a glazing.

The results provided by the QualiLENS® 400 are compatible with products / processes subject to the ECE R43 standard.
